1. The air compressor is equipped with a three-stage air filter and triple oil and gas separation system, efficient lubricating oil filter cooling system, axial flow inlet valve, fully enclosed base and noise insulation cover. The lifting ring at the top is for easy loading and unloading. Microcomputer control system interface is also available. And the accuracy reaches up to 10μ.

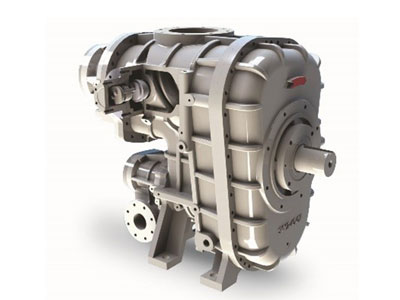

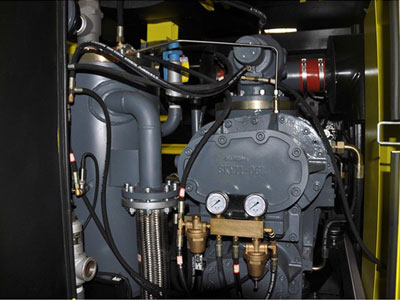

2. Patented SKY2 main structure of air compressor
It is designed to a max. pressure of 40 bar.
Rotor tooth profile: SKI II patented profile comes with high pressure, large exhaust capacity and highest efficiency.
Two-stage compression: this global patent is a flexible design to match the lift valve.
Heavy-duty design features SKF bearing, direct drive and no gear noise.
The main structure comes with the best structure and reliability.
Convenient and quick two working condition switching design: optional 33 m3 and 25 bar or 25 m3 and 35 bar working conditions for user to choose.

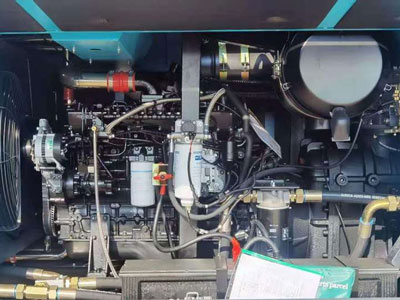

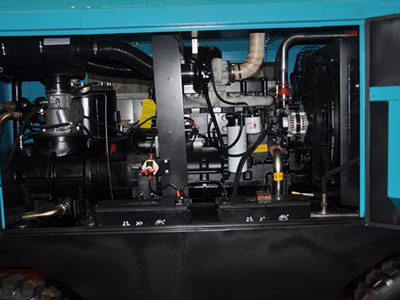

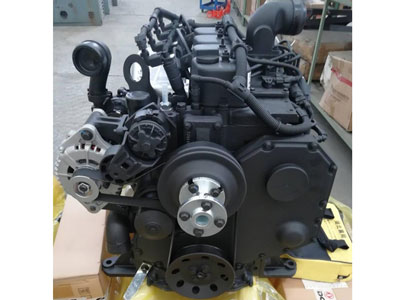

3. Heavy-duty electronically controlled injection diesel engine
Fuel speed control system: electrically controlled high-pressure common-rail system
The diesel engines are purchased from famous brand, such as Commins and Yuchai.
According to the load capacity, accurately control the amount of fuel injection electronically, so that the engine achieves the best combustion effect.
These engines offer high reliability, strong power and better fuel economy.

4. Standard configuration
SKY2-40 patented compressor
High-duty electronic fuel injection engine
Air compressor controller
Sound insulation cover
Fully-closed base
Multistage air filter
Large capacity fuel tank

5. Optional configuration
Two-stage compressor
Diesel engine
Secondary cooler
Steam and water separator, and drain valve

6. The convenient walking mechanism allows the air compressor to move flexibly even under harsh terrains. And each air compressor comes with a hanging ring for safe and easy hanging and transporting.
